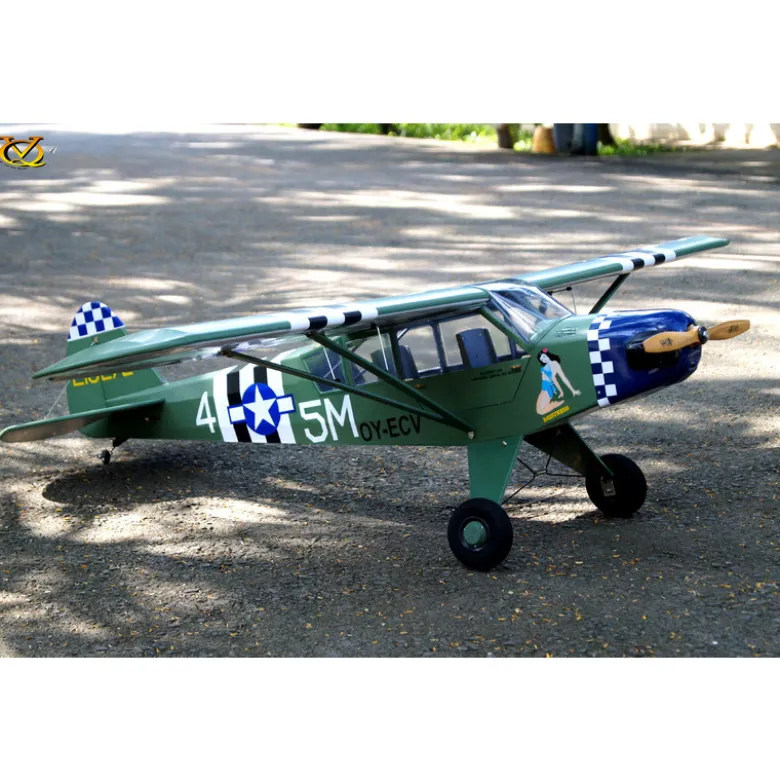

Avion VQ Model L-4A Grasshoper (30cc size EP/GP – warbird scale)

Le L–4 Grasshopper était mécaniquement identique au J–3 civil Cub, mais se distinguait par l’utilisation d’une lucarne en plexiglas et de vitres arrière pour une meilleure visibilité, un peu comme le Taylorcraft L–2 et l’Aeronca L–3 également utilisés par les forces armées américaines.

Features:
– All Balsa and lite-ply construction
– Fully covered in weathered detail
– Fiberglass cowling
– Control surfaces pre-hinged and installed
– Two piece wing with aluminium wing joiner
– Door can open-close
– Big battery hatch for Electric version

Specifications:
– Wingspan: 2710mm (106.6in.)
– Fuselage: 1720mm (67.7in.)
– Weight (ready to fly): 5.8 – 6.2 kg
– Glow engine: 26cc – 30cc / 2 stroke
– Glow engine: 38cc / 4 stroke
– Electric motor: Boost 160 with Lipo 22.2V –
5000 mAh x 2
– Radio req: 6 channel / 8 servos

Includes:
– Assembly instructions with stage photos
– Plywood seat.
– Fiberglass cowling with cowling hatch can open – close
– Aluminium landing gear, Plastic cover & Wheels
– Aluminium wing joiner
– Wing struts
– Engine mounts
– Spinner
– Fuel tank
– Decals and all hardware

Does not include: radio, motor, glue, and silicon fuel line
