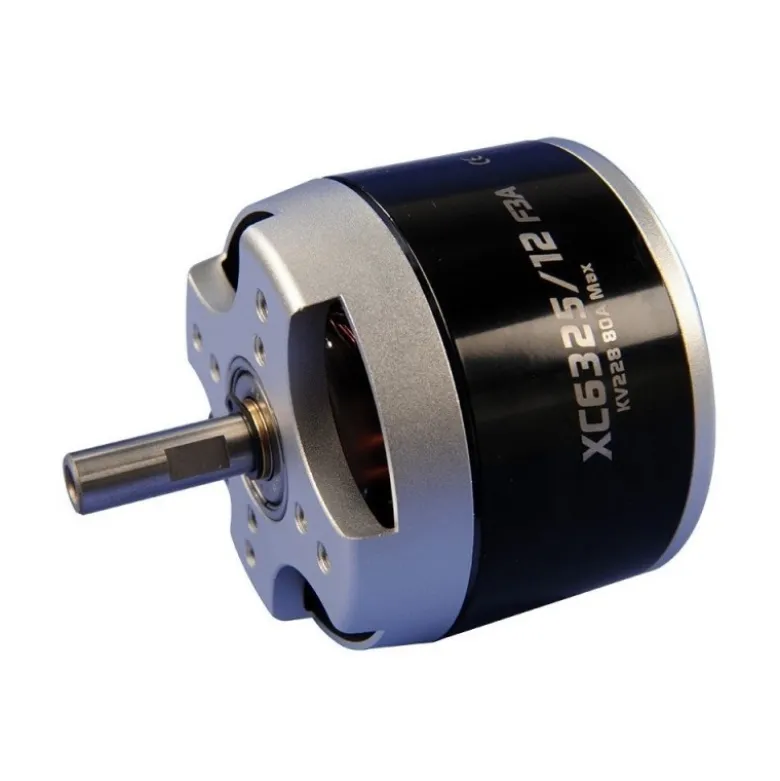

XPower XC6325/12 F3A 563g KV228

Moteur brushless OUTRUNNER de performances pour catégorie F3A

Caractéristiques techniques:

Recommended number of cells: 6-10 LiPo
KV: 228 RPM/V
Max current: 80A
Internal resistance: 63mOhm

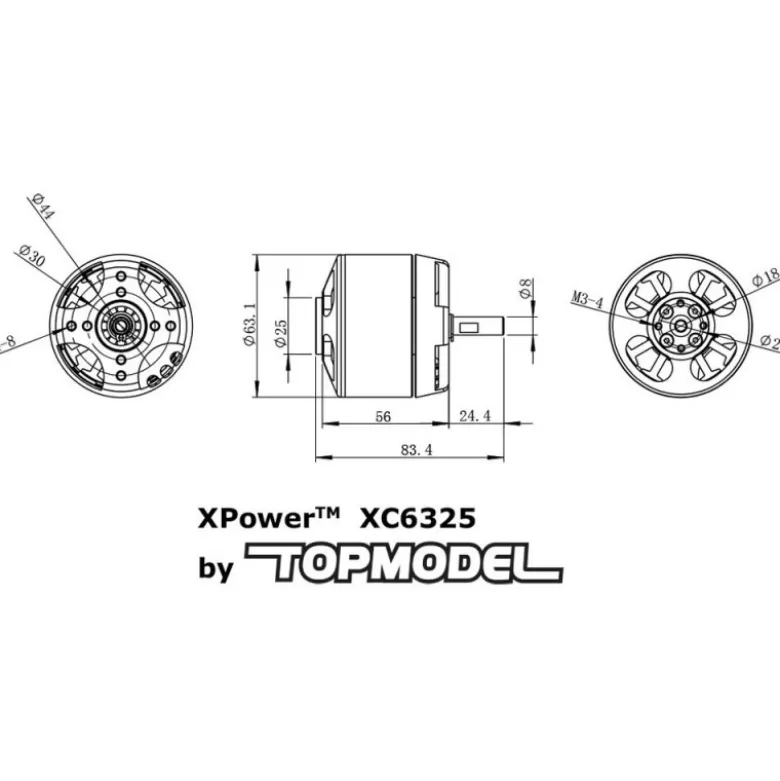

Dimensions: Ø63x58mm
Shaft diameter: 8mm
Weight motor alone (with 140mm feeding cables and gold 3.5 connectors): 563g
Weight motor equipped (with prop adapter, nut and prop washer): 596g
Recommended props: 19×12-20×13
Maxi T/O weight (g): 5000 (F3A)

Contrôleur recommandé: XPower XREG100

Mesures:

Prop: APC E 20×13
Controller: XPower XREG100 HV
Battery pack: XPower Xtreme 5000mAh 18,5Vx2 (2×5=10S)
RPM: 6300
Current drain: 72 A

Prop: APC E 21×14
Controller: XPower XREG100 HV
Battery pack: XPower Xtreme 5000mAh 18,5Vx2 (2x5S=10S)
RPM: 6150
Current drain: 82 A

Prop: APC E 20×10
Controller: XPower XREG100 HV
Battery pack: XPower Xtreme 5000mAh 11.1Vx2 (2x3S=6S)
RPM: 4750
Current drain: 32 A

Prop: APC E 20×13
Controller: XPower XREG100 HV
Battery pack: XPower Xtreme 5000mAh 11.1Vx2 (2x3S=6S)
RPM: 4600
Current drain: 36 A

Prop: APC E 22×12
Controller: XPower XREG100 HV
Battery pack: XPower Xtreme 5000mAh 11.1Vx2 (2x3S=6S)
RPM: 4300
Current drain: 44 A

Pour modèles genre: F3A, avions de voltige 3D comme SLICK 73″, etc.

Livré complet avec connecteurs gold 3,5mm, bâti radial et adaptateurs d’hélice.
